Description
- Hign-concerned Chemical: None
- is_customized: Yes
- Output Current: 160A
- Model Number: solar inverter
- Output Type: DUAL
- Weight: 16kg
- Brand Name: gootu
- Is Smart Device: YES
- Origin: Mainland China
- Certification: CE,RoHS
- Max. PV Array Power: 10200W
- Max. Main Load: 10200W
- Max. Efficiency: 94%
- Rated Battery Input Voltage: 48V
- Max. PV Input Voltage: 500VDC
- Output Type: Single, Dual
- Nominal Inputt Voltage: 220/230/240VAC
- Max. Solar Charging Current: 160A
- Rated Output Power: 10200W/10200VA
- MPPT Voltage Range: 90-450VDC

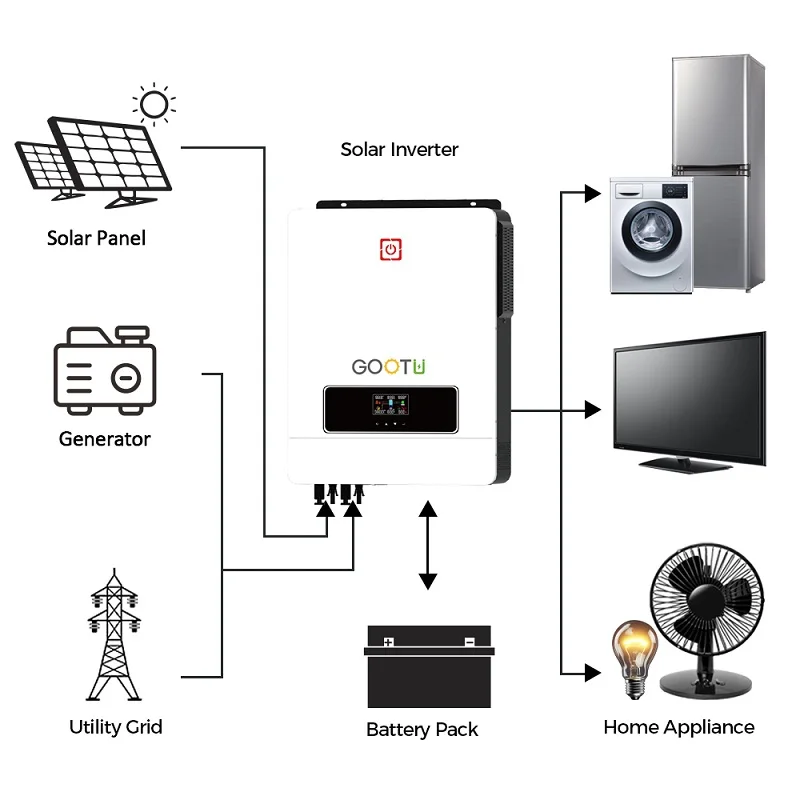

GOOTU dual output hybrid solar inverter is a type of solar inverter that has two separate AC outputs. This allows for the inverter to be used in a variety of different applications, such as powering two separate buildings or powering a home and a backup generator simultaneously. The dual output feature also allows for greater flexibility in system design, as it can be used to optimize energy production and distribution. Dual output solar inverters are commonly used in larger residential and commercial solar installations.
Rated Output Power: 6200W/6200VA
Nominal Inputt Voltage: 220/230/240VAC
Rated Battery Input Voltage: 48V
Max. PV Input Power: 6500W
MPPT Voltage Range: 60-450VDC
Max. PV Input Voltage: 450VDC
Max. Solar Charging Current: 120A
Max. Main Load: 5000-10000W
Max. Second Load(battery mode): 1666-3333W
Max. Efficiency: ＞94%

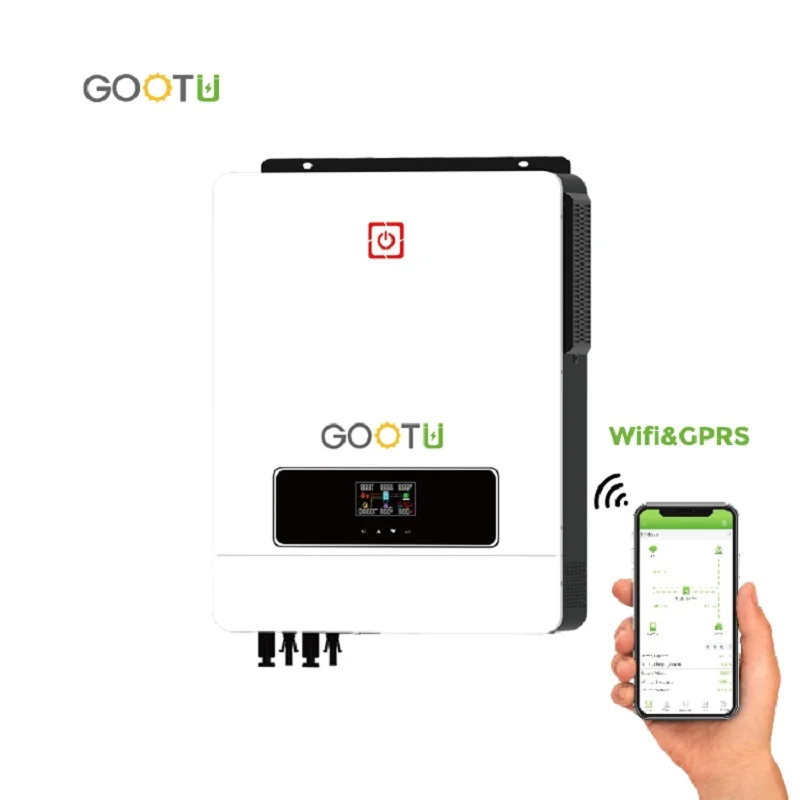

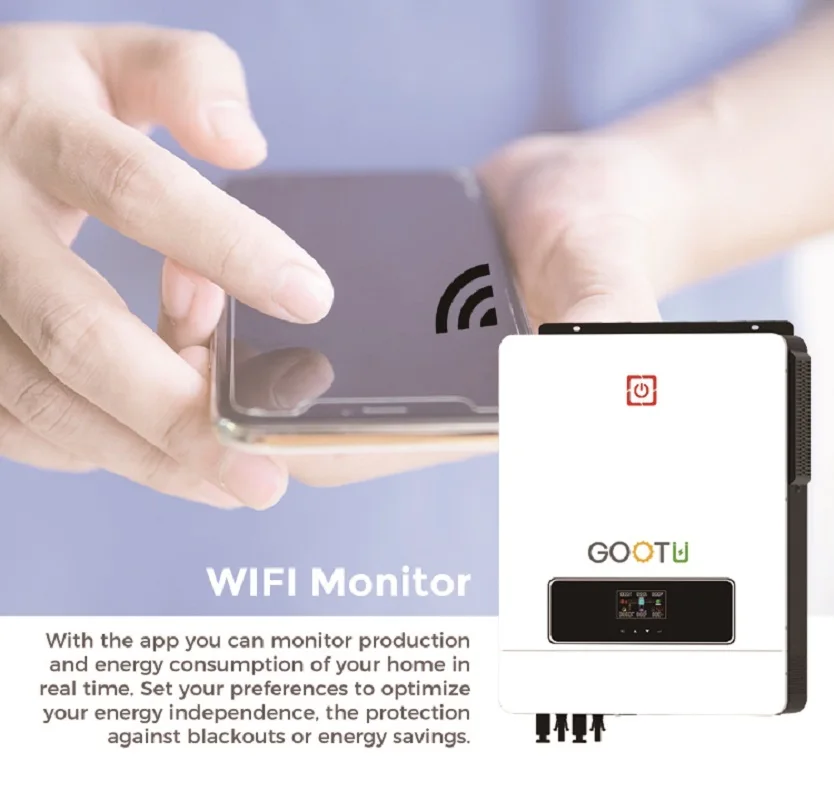

WiFi and GPRS remote monitoring
1. Built-in wireless communication function, users can monitor system performance and power consumption in real time through mobile phones or computers
2. Settings can be adjusted at any time, which is very suitable for scenarios that require precise energy management
Efficient dual MPPT design
1.These inverters use dual maximum power point tracking (MPPT) technology to efficiently convert solar energy into usable electricity and cover a wider input voltage range, increasing solar energy utilization.
2.Energy saving and environmental protection benefits: With a DC-AC conversion efficiency of up to 98%, it can effectively reduce carbon dioxide emissions while reducing energy loss, making it very suitable for users seeking sustainable development solutions

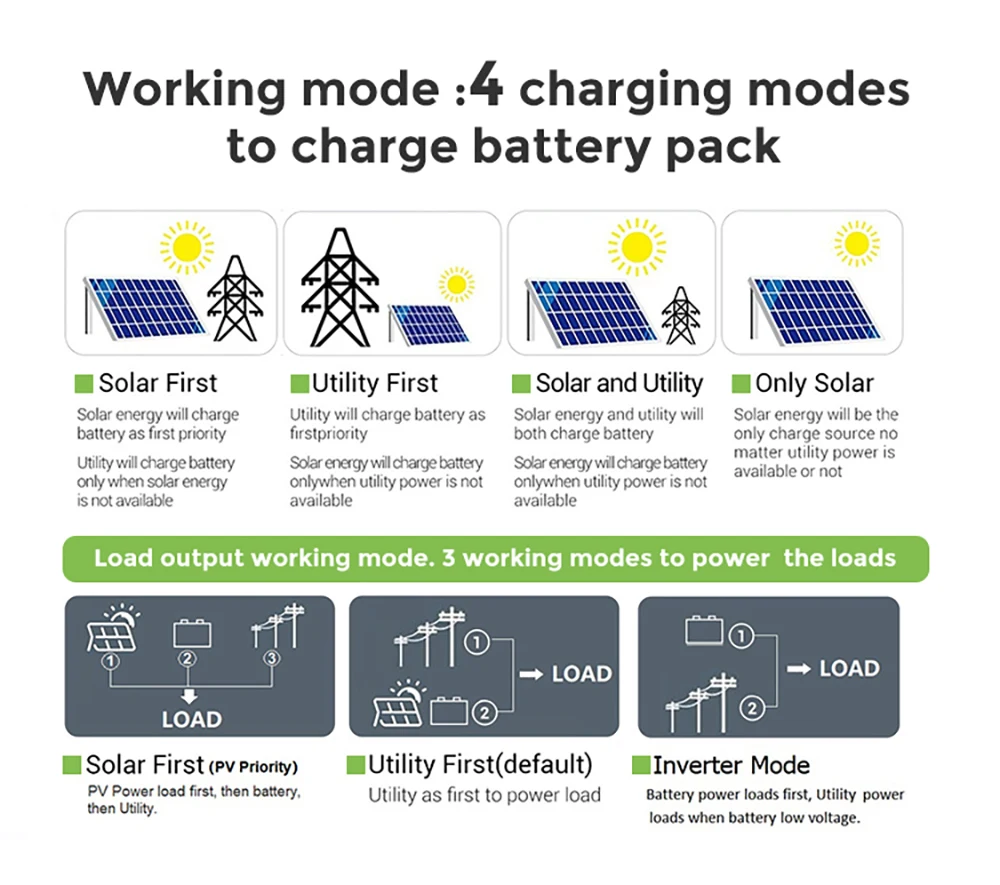

4 charging modes and 3 power supply modes:
1.Solar First: Use solar energy to charge the battery first, and only use the mains when there is no solar energy.
2.Utility First: Use the mains to charge the battery first, and only use solar energy when there is no mains.
3.Solar and Utility: Both solar energy and mains charge the battery at the same time.
4.Only Solar: Only rely on solar energy to charge, and will not use mains even if there is mains.
360° all-round protection
1. Short circuit protection: prevent accidental short circuit from damaging the device.
2. Overcurrent protection: prevent excessive current from burning the device.
3. Overvoltage and undervoltage protection: automatic protection when the voltage is too high or too low to ensure the stability of the device.
4. Overload protection: prevent excessive load from affecting the life of the device.
5. Backflow protection: prevent current backflow from damaging the system.
6. Overtemperature protection: automatic adjustment when the temperature is too high to prevent overheating.
7. Overcharge protection: prevent the battery from being overcharged and extend the service life.
