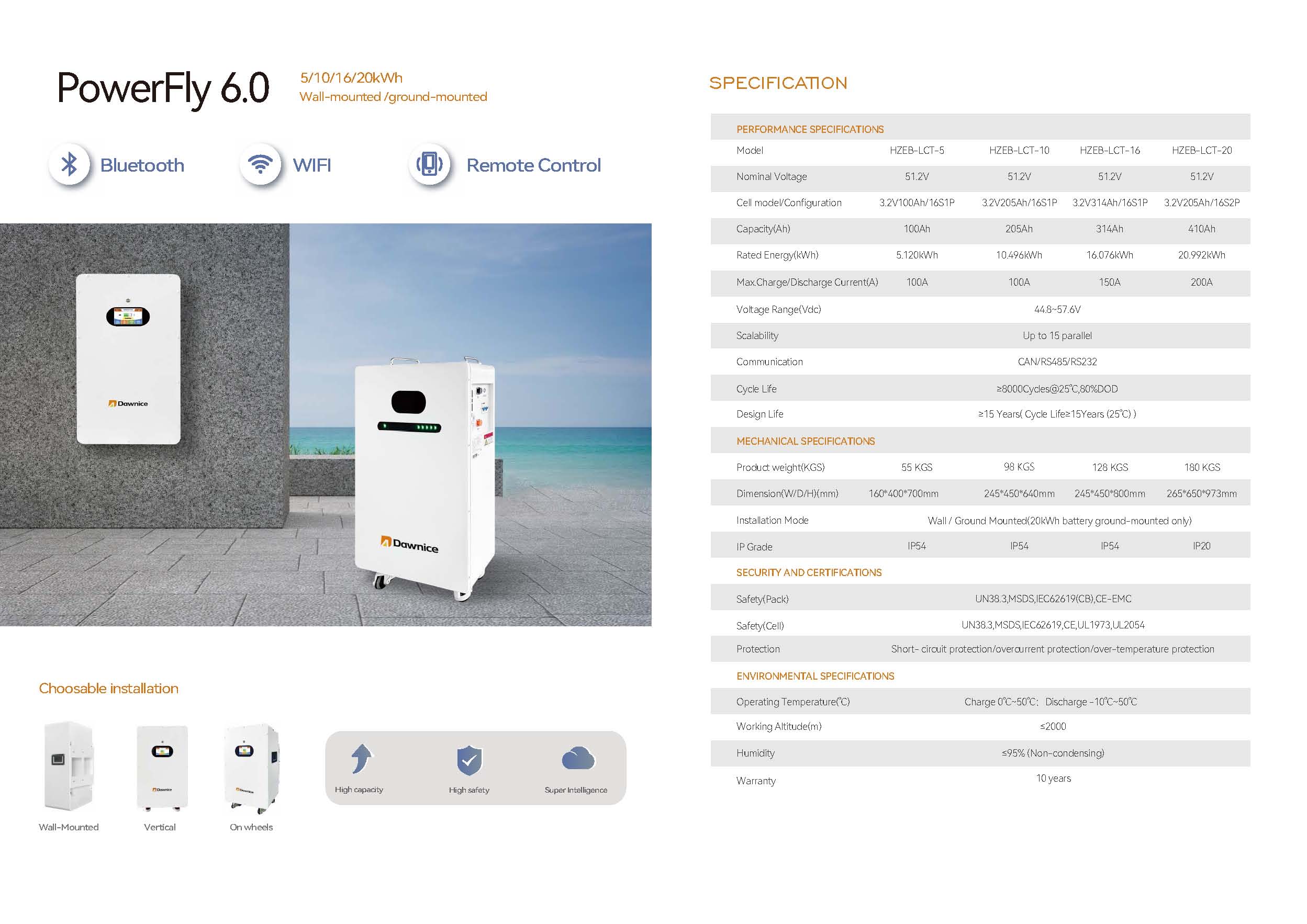

RESIDENTIAL ENERGY STORAGE BATTERY SERIES- 5/10/16/20KWH Wall-mounted /ground-mounted

Battery Description

Basic Specifications:

• Model: HZEB-LCT
• Nominal Voltage: 51.2V
• Cell Type/Configuration: LiFePO₄ – (16S1P or 16S2P depending on capacity)
• Capacity: 100Ah to 410Ah depending on the model
• Rated Energy: 5.12kWh to 20.99kWh depending on the model
• Voltage Range: 44.8V – 57.6V
• Max Charge/Discharge Current: 100A – 200A depending on capacity

Design and Structure:

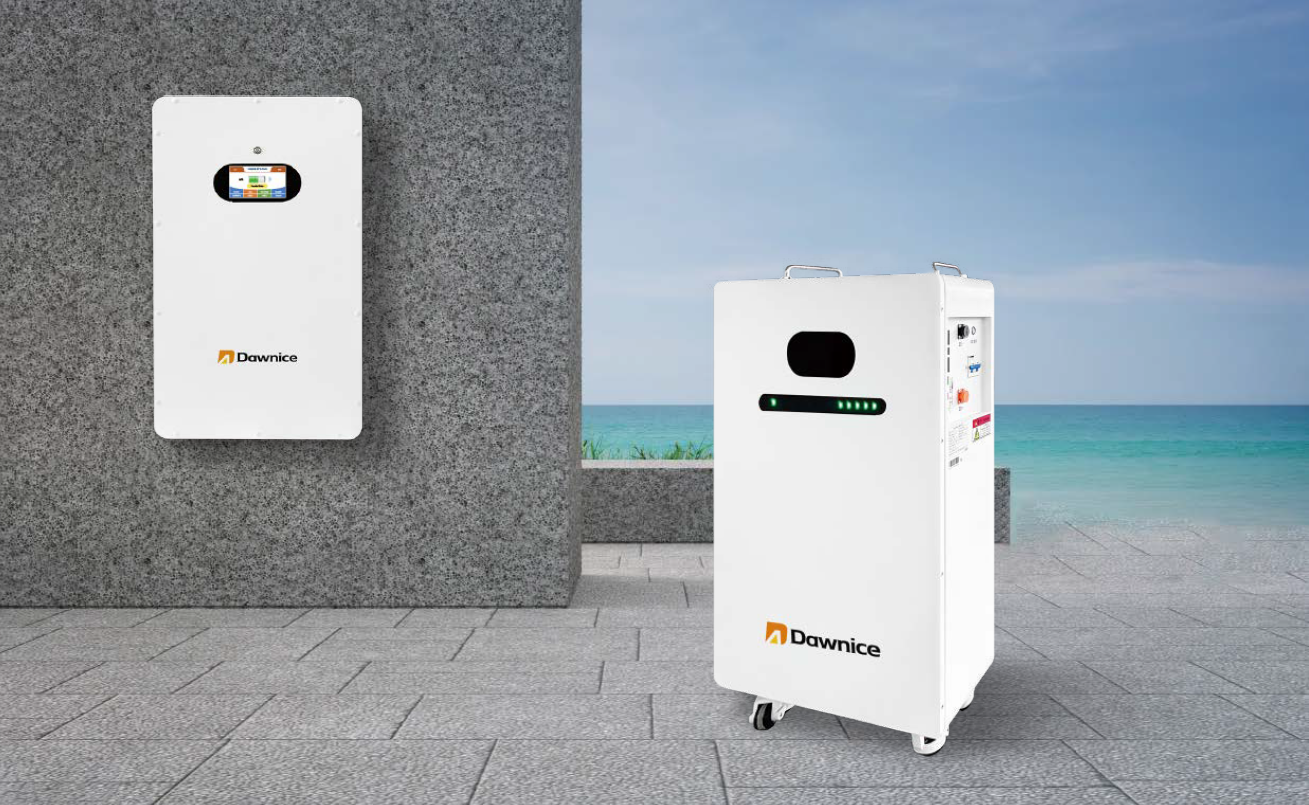

• Installation Mode: Wall-mounted or ground-mounted (20kWh model is ground-mounted only)
• IP Rating: IP54 (except for the 20kWh model: IP20)
• Scalability: Supports up to 15 parallel units
• Communication: CAN / RS485 / RS232

Lifecycle & Durability:

• Cycle Life: ≥ 8000 cycles @ 80% Depth of Discharge (DOD) at 25°C
• Design Life: ≥ 15 years

Environmental Specifications:

• Operating Temperature:
  • Charge: 0°C to 50°C
  • Discharge: -10°C to 50°C
• Humidity: ≤ 95% (Non-condensing)
• Working Altitude: ≤ 2000m

Safety & Certifications:

• Protection Features: Short-circuit protection, overcurrent protection, over-temperature protection
• Certifications:
  • UN38.3, MSDS, IEC62619 (CB), CE-EMC
  • UL1973, UL2054 (for some models)

Dimensions & Weight:

Warranty:

• 10 years

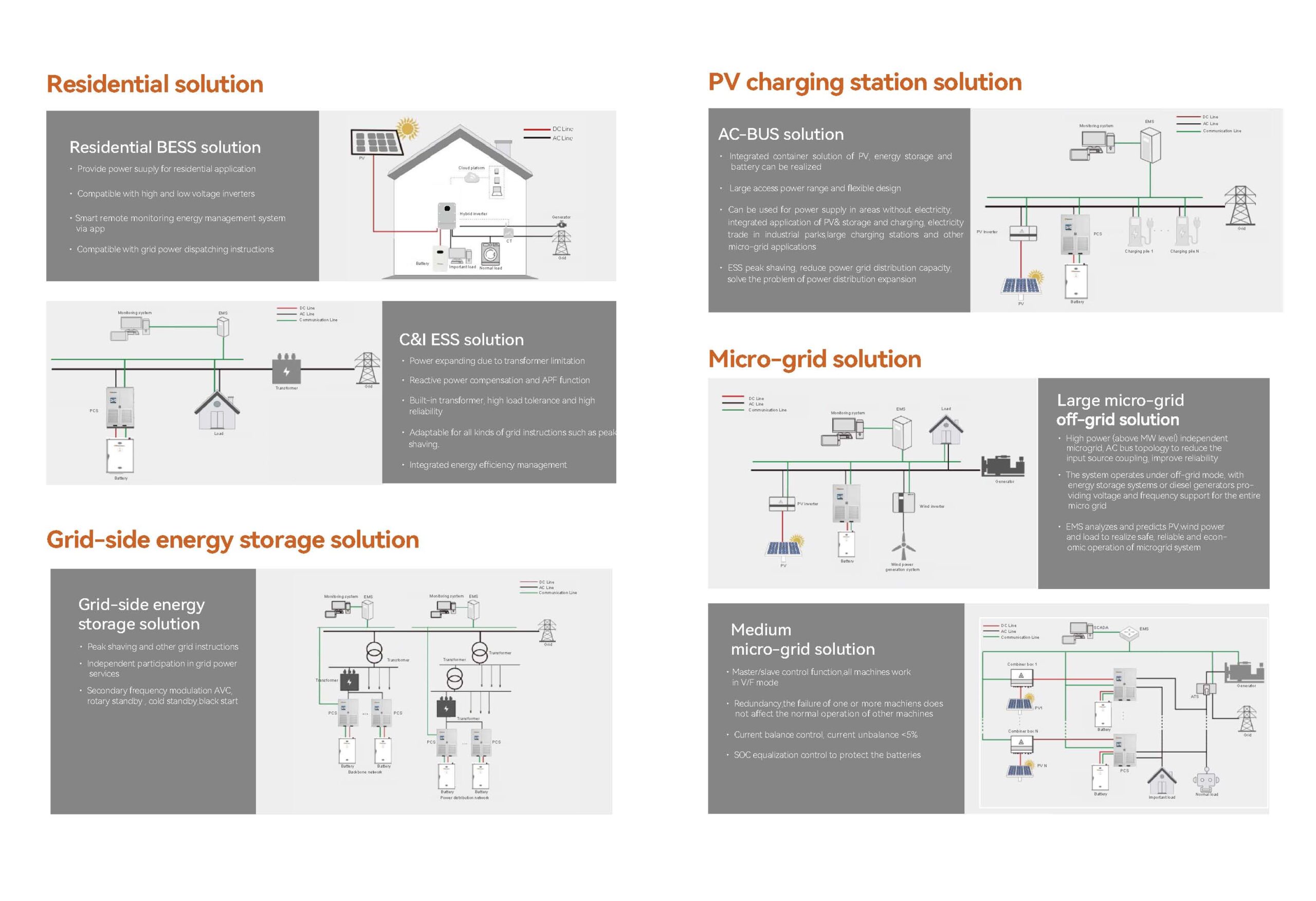

These batteries are ideal for solar energy storage systems, home backup power, and commercial applications, providing reliable performance, long lifespan, and advanced protection features.
