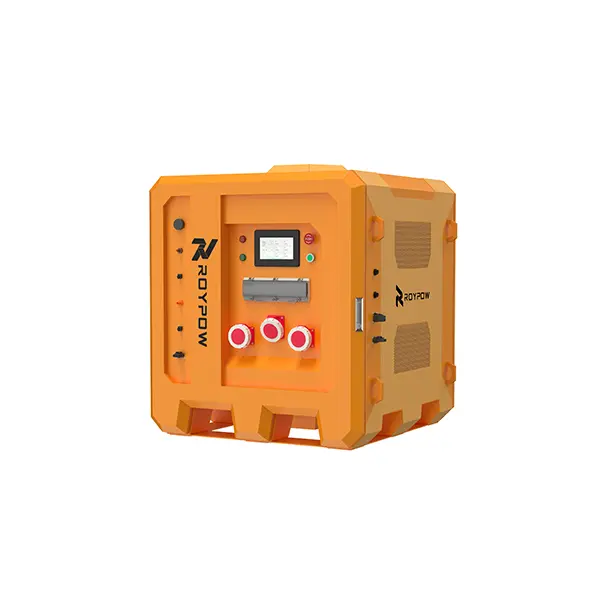

Mobile Energy Storage System PC15KT

صيسي صثيصث
April 29, 2025 3:15 pm
China

New

On Call

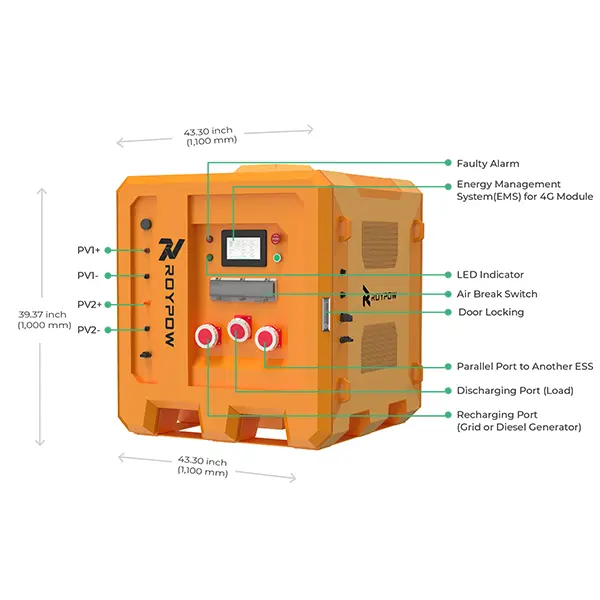

ROYPOW Mobile Energy Storage System integrates powerful technologies and functions into a compact, easy-to-transport cabinet. It offers plug-and-play convenience, fuel efficiency, and the ability to scale up for larger power demands. Ideal for small and medium commercial and industrial sites.

AC Output (Discharging)

Rated Power	15 kW (90 kW / 6 in Parallel)
Rated Voltage / Frequency	380 V / 400 V 50 / 60 Hz
Rated Current	3 x 21.8 A
Single-Phase	220 / 230 VAC
Apparent Power	22500 kVA
AC Connection	3W+N
Overload Capacity	120% @10min / 200% @10S

AC Input (Charging)

Rated Power	15 kW
Rated Voltage / Current	380 V / 400 V 22.5 A
Single Phase / Current	220 V / 230 V 22 A (Optional)
THDI	≤3%
AC Connection	3W+ N

Battery

Battery Chemistry	LiFePO4
DoD	90%
Rated Capacity	30 kWh (Max. 180 kWh / 6 in Parallel)
Voltage	550 ~ 950 VDC

DC Input (PV)

Max. Power	30 kW
Number of MPPT / Number of MPPT Input	2-2
Max. Input Current	30 A / 30 A
MPPT Voltage Range	160 ~ 950 V
Number of String per MPPT	2 / 2
Start-up Voltage	180 V

Physical

Ingress Rating	IP54
Scalability	Max. 6 in Parallel
Relative Humidity	0 ~ 100% Non-condensing
Fire Suppression System	Hot Aerosol (Cell & Cabinet)
Max. Efficiency	98% (PV to AC); 94.5% (BAT to AC)
Topology Operating Ambient	Transformerless
Temperature	-20 ~ 50℃ (-4 ~ 122℉)
Noise Emission (dB)	≤ 70
Cooling	Natural Cooling
Altitude (m)	4000 (>2000 Derating)
Weight (kg)	≤670 KG
Dimensions (LxWxH)	1100 x 1100 x 1000 mm
Standard Compliance	EN50549, AS4777.2, VDE4105, G99, IEEE1547, NB/T 32004, IEC62109, NB/T 32004, UL1741, IEC61000, NB/T 32004
