Ground PV Mounting System

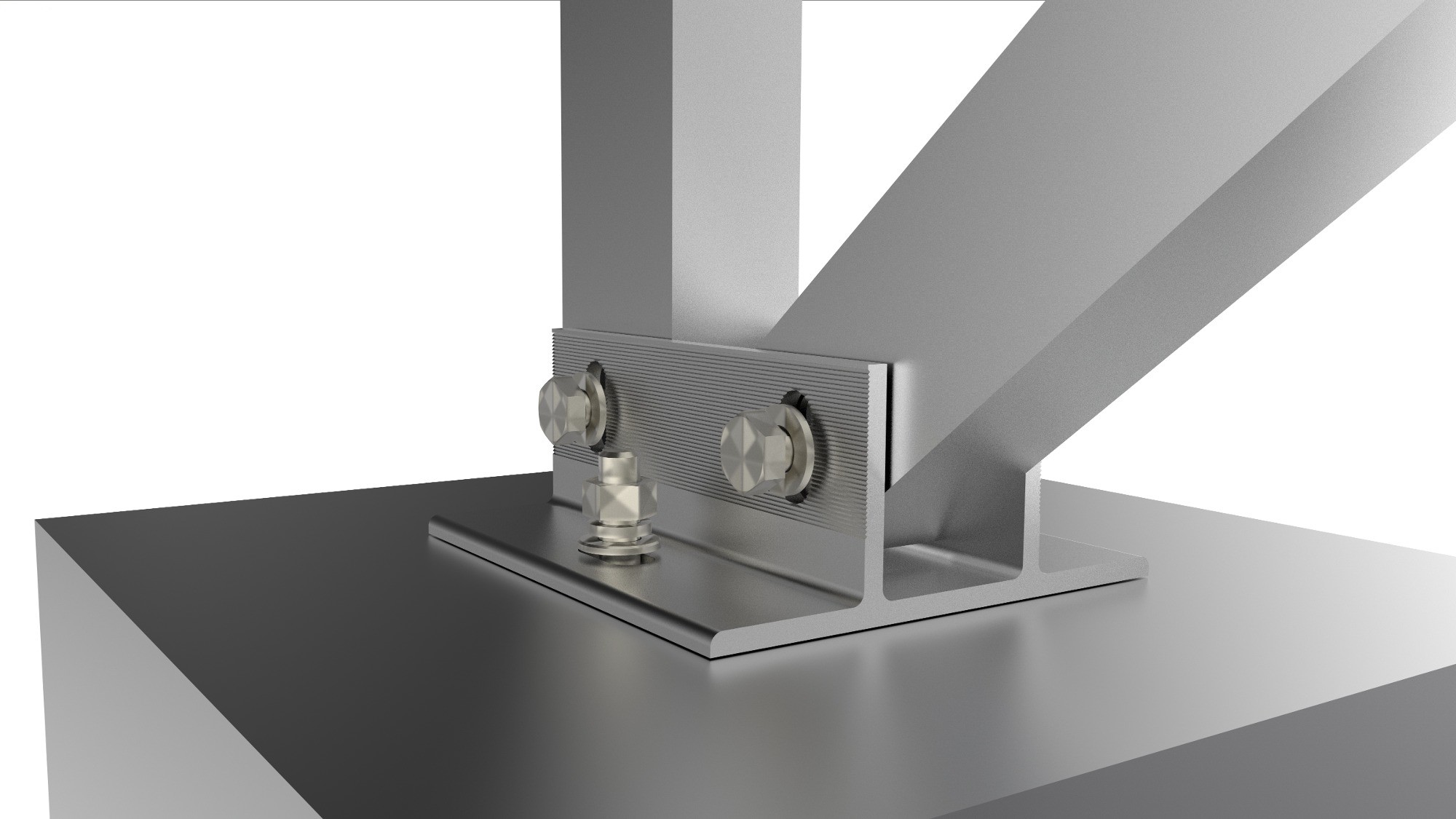

• The base connector fixes the column.

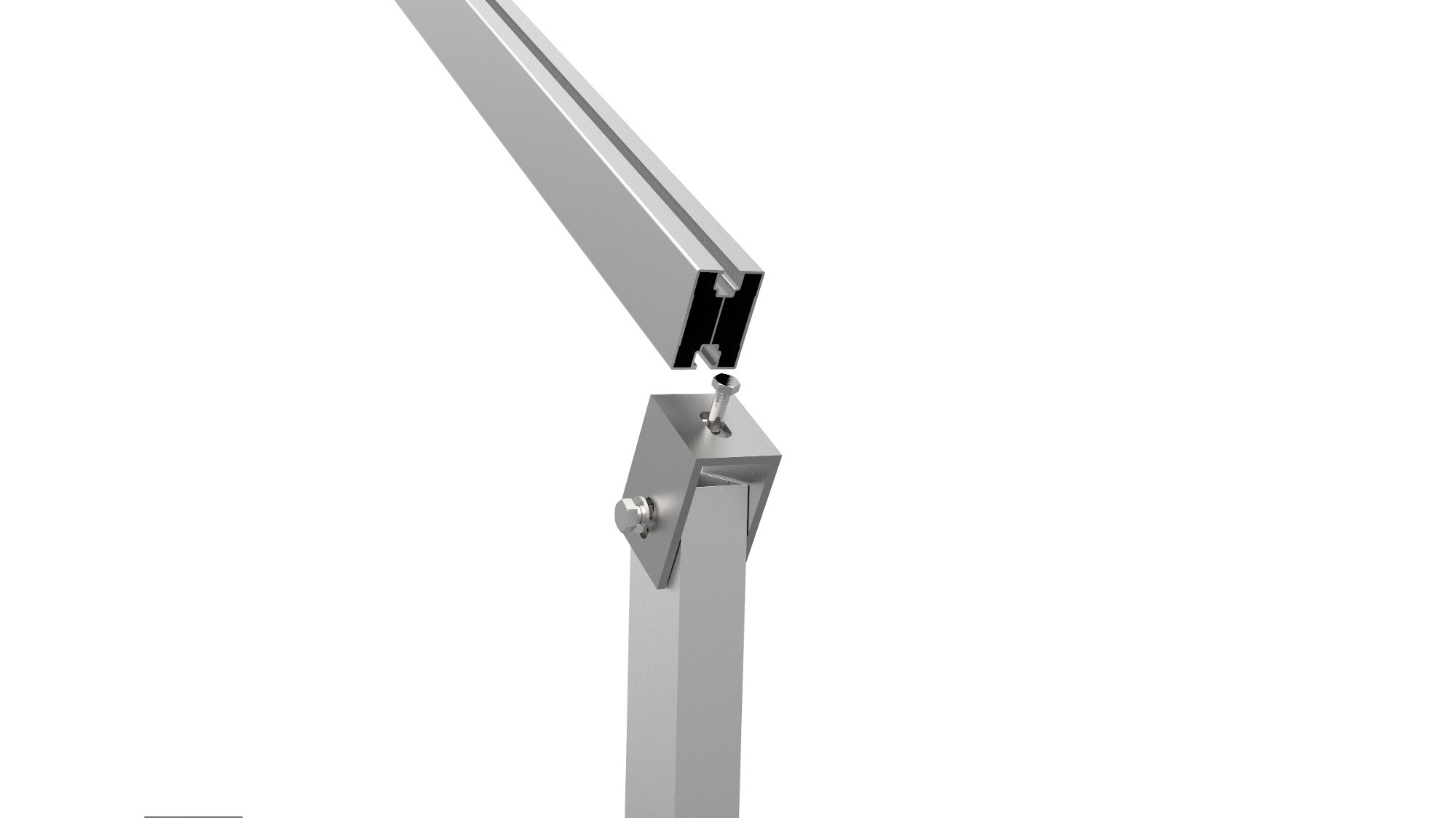

• Connect main beam and column-by-column connections.

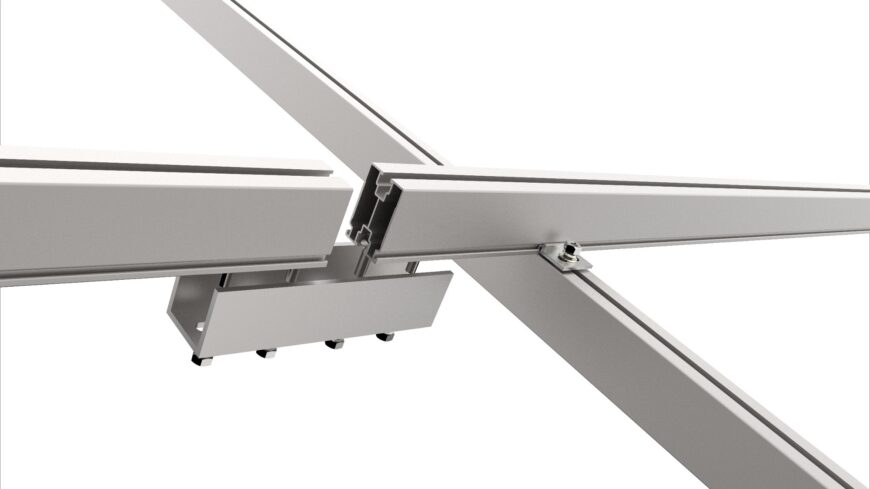

• Connect internal purlins by purlin connections and then connect with the main beam.

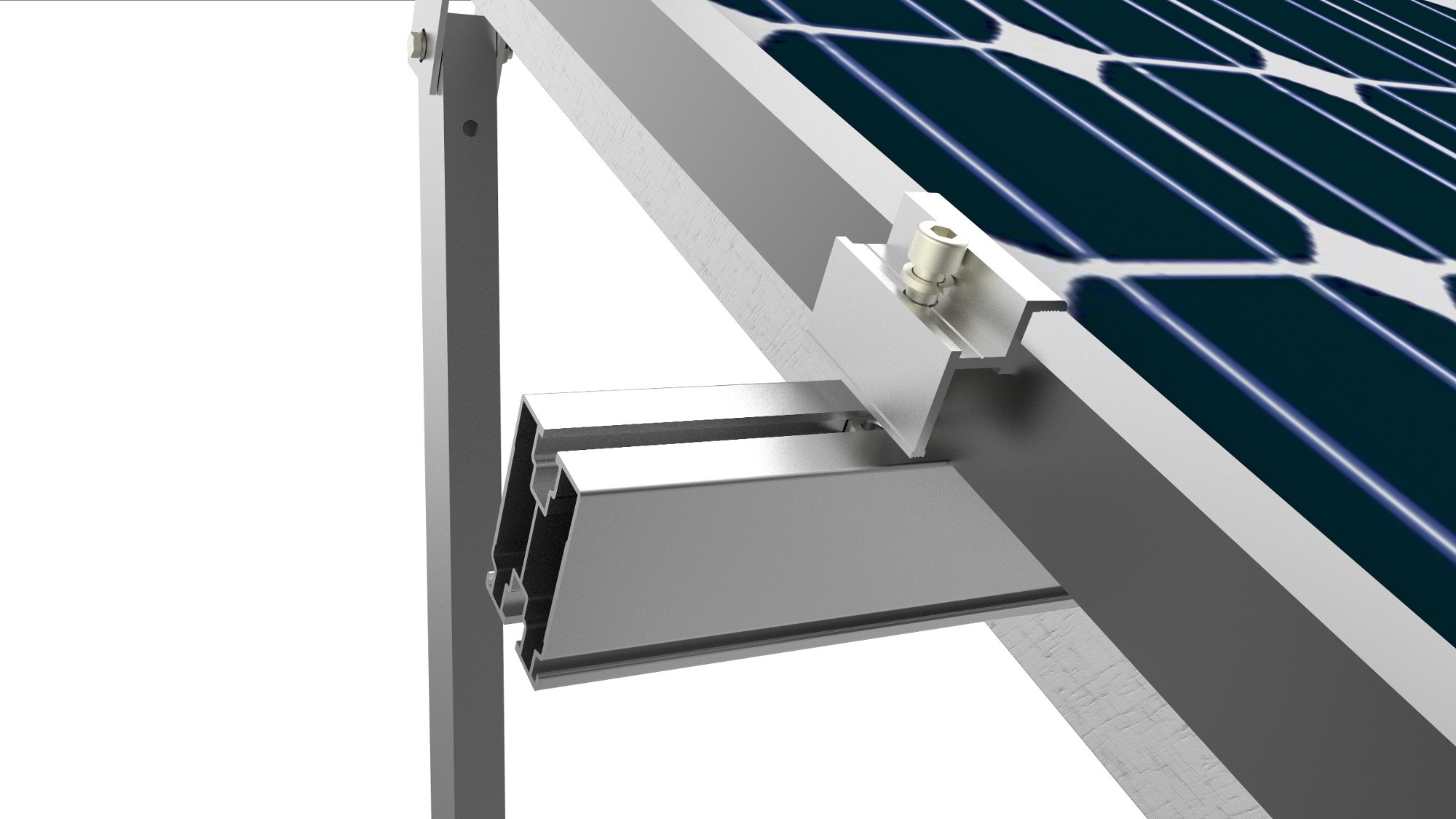

• The PV module is fixed on the purlin used to press the block.

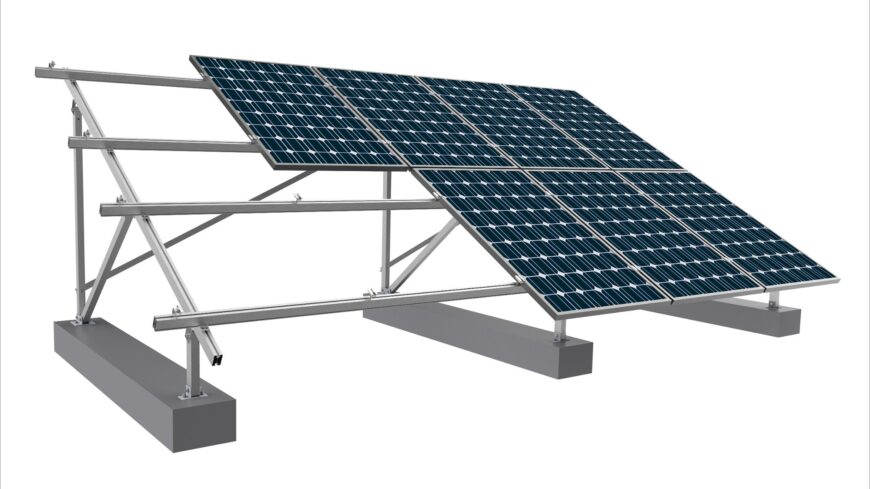

The aluminum ground photovoltaic mounting system is mainly suitable for ground and concrete flat roofs. This system uses aluminum alloy as the material. It is light in weight, strong in combination, and aesthetic in shape, which can meet the various needs of customers.

Technical parameters:

• Installation position: ground or concrete flat roof
• Main material: aluminum alloy
• Designed wind pressure: 0.55kN/m²
• Designed snow pressure: 0.5kN/m²
• Service life: 30 years
